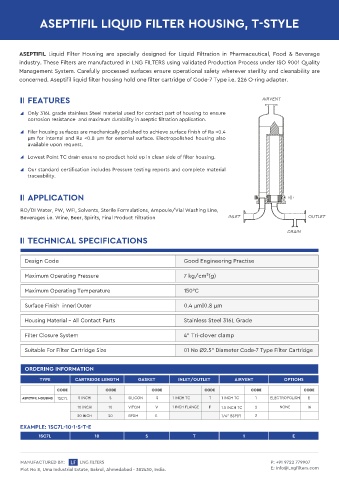

ASEPTIFIL LIQUID FILTER HOUSING, T STYLE






        ASEPTIFIL  Liquid Filter  Housing  are  specially  designed  for Liquid  Filtration  in  Pharmaceutical,  Food &  Beverage
        industry. These Filters are manufactured in LNG FILTERS using validated Production Process under ISO 9001 Quality
        Management System. Carefully processed surfaces ensure operational safety wherever sterility and cleanability are
        concerned. Aseptifil liquid filter housing hold one filter cartridge of Code-7 Type i.e. 226 O-ring adapter.


           FEATURES                                                                          AIRVENT

           Only 316L grade stainless Steel material used for contact part of housing to ensure
           corrosion resistance  and maximum durability in aseptic filtration application.

           Filer housing surfaces are mechanically polished to achieve surface finish of Ra <0.4
            m for internal and Ra <0.8  m for external surface. Electropolished housing also
           available upon request.

           Lowest Point TC drain ensure no product hold up in clean side of filter housing.
           Our standard certification includes Pressure testing reports and complete material
           traceability.


           APPLICATION

        RO/DI Water, PW, WFI, Solvents, Sterile Formulations, Ampoule/Vial Washing Line,
        Beverages i.e. Wine, Beer, Spirits, Final Product Filtration             INLET                       OUTLET

                                                                                                      DRAIN
           TECHNICAL SPECIFICATIONS


          Design Code                                             Good Engineering Practise


          Maximum Operating Pressure                              7 kg/cm (g)

          Maximum Operating Temperature                           150°C

          Surface Finish  inner|Outer                             0.4  m|0.8  m

          Housing Material – All Contact Parts                    Stainless Steel 316L Grade


          Filter Closure System                                   4” Tri-clover clamp

          Suitable For Filter Cartridge Size                      01 No Ø2.5” Diameter Code-7 Type Filter Cartridge


          ORDERING INFORMATION
               TYPE        CARTRIDGE LENGTH       GASKET        INLET OUTLET       AIRVENT           OPTIONS

                     CODE             CODE            CODE               CODE            CODE               CODE
         ASPETIFIL HOUSING  1SC7L  5 INCH  5  SILICON   S     1 INCH TC   T    1 INCH TC   1    ELECTROPOLISH  E
                            10 INCH    10     VITON     V     1 INCH FLANGE  F  1.5 INCH TC  2     NONE      N
                            20 INCH    20     EPDM      E                      1 4" BSP F   3

        EXAMPLE: 1SC7L 10 1 S T E
               1SC7L              10                S                T                1                 E




        MANUFACTURED BY:                                                                        P: +91 9722 779907
        Plot No 8, Uma Industrial Estate, Bakrol, Ahmedabad - 382430, India.                    E: Info@Lngfilters.com
