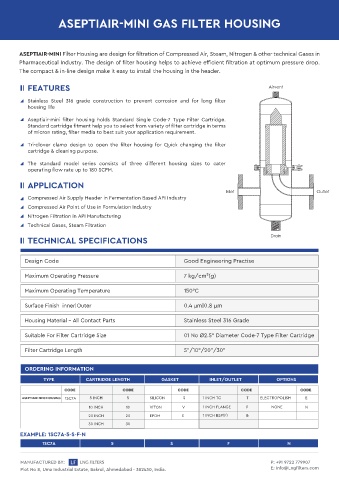

ASEPTIAIR MINI GAS FILTER HOUSING






        ASEPTIAIR MINI Filter Housing are design for filtration of Compressed Air, Steam, Nitrogen & other technical Gases in
        Pharmaceutical Industry. The design of filter housing helps to achieve efficient filtration at optimum pressure drop.
        The compact & in-line design make it easy to install the housing in the header.

           FEATURES

           Stainless Steel 316 grade construction to prevent corrosion and for long filter
           housing life

           Aseptiair-mini filter housing  holds Standard  Single  Code-7 Type Filter  Cartridge.
           Standard cartridge fitment help you to select from variety of filter cartridge in terms
           of micron rating, filter media to best suit your application requirement.

           Tri-clover clamp design to open the filter housing for Quick changing the filter
           cartridge & cleaning purpose.

           The standard model series consists of three different housing sizes to cater
           operating flow rate up to 180 SCFM.

           APPLICATION


           Compressed Air Supply Header in Fermentation Based API Industry
           Compressed Air Point of Use in Formulation Industry
           Nitrogen Filtration in API Manufacturing
           Technical Gases, Steam Filtration

           TECHNICAL SPECIFICATIONS


          Design Code                                             Good Engineering Practise


          Maximum Operating Pressure                              7 kg/cm (g)

          Maximum Operating Temperature                           150°C

          Surface Finish  inner|Outer                             0.4  m|0.8  m

          Housing Material – All Contact Parts                    Stainless Steel 316 Grade


          Suitable For Filter Cartridge Size                      01 No Ø2.5” Diameter Code-7 Type Filter Cartridge

          Filter Cartridge Length                                 5”/10”/20”/30”


          ORDERING INFORMATION
                TYPE           CARTRIDGE LENGTH           GASKET           INLET OUTLET           OPTIONS

                        CODE                CODE               CODE                   CODE                 CODE
         ASEPTIAIR MINI HOUSING  1SC7A  5 INCH  5     SILICON    S      1 INCH TC       T   ELECTROPOLISH   E
                                10 INCH      10       VITON      V      1 INCH FLANGE  F        NONE        N
                                20 INCH      20       EPDM       E      1 INCH BSP F   B
                                30 INCH      30
        EXAMPLE: 1SC7A 5 S F N
                1SC7A                   5                    S                   F                    N



        MANUFACTURED BY:                                                                        P: +91 9722 779907
        Plot No 8, Uma Industrial Estate, Bakrol, Ahmedabad - 382430, India.                    E: Info@Lngfilters.com
