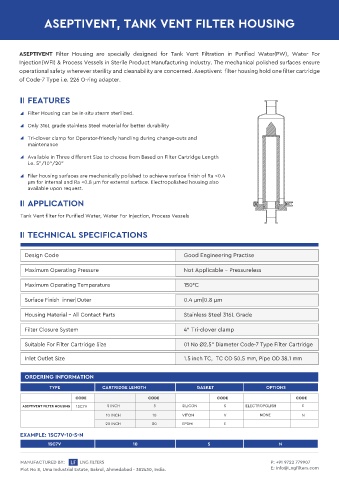

ASEPTIVENT, TANK VENT FILTER HOUSING






        ASEPTIVENT  Filter Housing are specially designed for Tank Vent Filtration in Purified Water(PW), Water For
        Injection(WFI) & Process Vessels in Sterile Product Manufacturing Industry. The mechanical polished surfaces ensure
        operational safety wherever sterility and cleanability are concerned. Aseptivent  filter housing hold one filter cartridge
        of Code-7 Type i.e. 226 O-ring adapter.


           FEATURES

           Filter Housing can be in-situ steam sterilized.

           Only 316L grade stainless Steel material for better durability

           Tri-clover clamp for Operator-friendly handling during change-outs and
           maintenance

           Available in Three different Size to choose from Based on Filter Cartridge Length
           i.e. 5”/10”/20”

           Filer housing surfaces are mechanically polished to achieve surface finish of Ra <0.4
            m for internal and Ra <0.8  m for external surface. Electropolished housing also
           available upon request.

           APPLICATION

        Tank Vent filter for Purified Water, Water For Injection, Process Vessels


           TECHNICAL SPECIFICATIONS



          Design Code                                             Good Engineering Practise

          Maximum Operating Pressure                              Not Applicable – Pressureless


          Maximum Operating Temperature                           150°C

          Surface Finish  inner|Outer                             0.4  m|0.8  m

          Housing Material – All Contact Parts                    Stainless Steel 316L Grade

          Filter Closure System                                   4” Tri-clover clamp


          Suitable For Filter Cartridge Size                      01 No Ø2.5” Diameter Code-7 Type Filter Cartridge

          Inlet Outlet Size                                       1.5 inch TC,  TC OD 50.5 mm, Pipe OD 38.1 mm


          ORDERING INFORMATION
                  TYPE               CARTRIDGE LENGTH                 GASKET                   OPTIONS

                            CODE                     CODE                    CODE                        CODE
         ASEPTIVENT FILTER HOUSING  1SC7V  5 INCH      5         SILICON        S      ELECTROPOLISH       E
                                      10 INCH          10        VITON          V           NONE           N
                                      20 INCH         20         EPDM           E
        EXAMPLE: 1SC7V 10 S N

                  1SC7V                         10                        S                        N


        MANUFACTURED BY:                                                                        P: +91 9722 779907
        Plot No 8, Uma Industrial Estate, Bakrol, Ahmedabad - 382430, India.                    E: Info@Lngfilters.com
